Part Number: NEX-751-LED/R3 / Vendor ID Number: 104 / Custom:

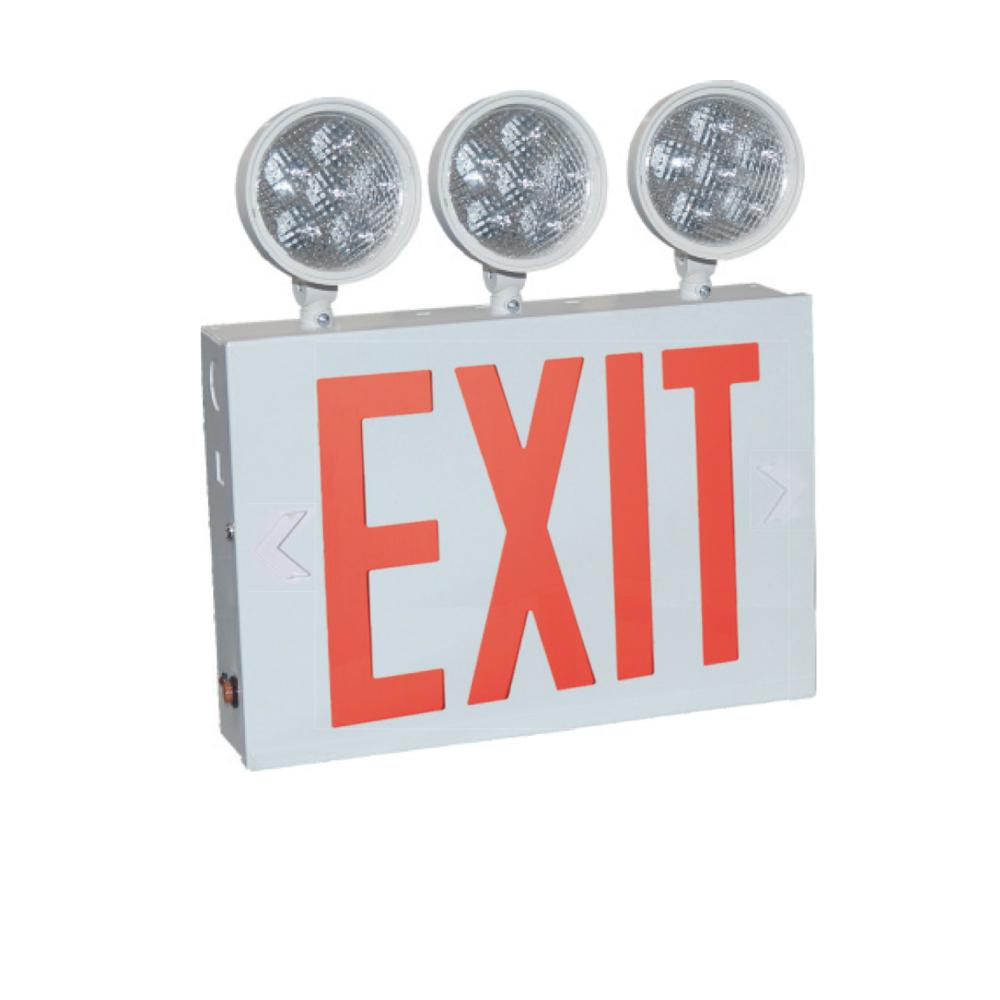

NYC Approved Steel LED Exit with Three 9W Adjustable Heads, Battery Backup, White Housing w/ Red

NYC Approved Steel LED Exit with Three 9W Adjustable Heads, Battery Backup, White Housing w/ Red
by Nora

203
85
Pack Of: 1
193 In Stock
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 17.00"
Width: 2.25"
Finish
White
Product Overview
LED exit sign with 8" red letters with 1" stroke and white housing. NYC Approved Steel LED Exit with three 1W / 100lm per head adjustable head LED emergency lights & battery backup. Rugged 20 gauge steel luminaires comply with the latest New York City codes and performance standards. Available in exit or exit/ emergency combination units.
Input Voltage: 120/277VAC
Wattage: 4.1W
Lumens / Wattage Per Head: (3) 100lm / 1W
Battery: Ni-Cad 3.6V 600mAH per head battery offers 90 minute emergency operation on fully charged battery.
Testing: High-charge / ready operation indicator light and test button.
Finish: White
Face: Both double and a blank face are included with 8" red letters and 1" stroke. Knockout directional chevrons
Mounting: Wall or side mount. All mounting hardware included.
Listing: cULus Listed for Damp Locations, UL 924, NFPA 101, NYC Approved
Product Availability
    Item appears to be in stock and ready to ship
Additional Information
11.5
Info & Guides
Spec Sheet
Technical Details
Details
Category:
Utility
Subcategory:
Exit Signs
Style:
Traditional
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Product Line:
5010
Est. Shipping Wt.:
14
Length:
14.75
Lumens / Light Output:
300lm
Ship Carton Height:
17.125
Ship Carton Length:
16.25
Ship Carton Width:
4.75
Weight:
9.35
Battery Quantity:
2
Battery Type:
Nickel- Cadmium
Contains Battery:
Y
Country of Origin:
CHN
DLC Listed:
No
Master Box H:
18
Master Box L:
17
Master Box Qty:
3
Master Box W:
16
Master Box Wt.:
36
Product Family:
EXIT
Safety Listing:
UL 924, NYC Approved, NFPA-101
Wattage:
4.1W
Manufactured By:
Nora
